Wrangler Deluxe Swing Set Hardware Kit with Slide by Swing-N-Slide

$341.24

Just add wood for the perfect customizable swing set! The Wrangler Deluxe DIY Hardware Kit with Slide by Swing-N-Slide features our best-selling design features, including a tower and swing beam combo. This DIY play set...

  • 7 activities for up to 12 kids ages 2-10

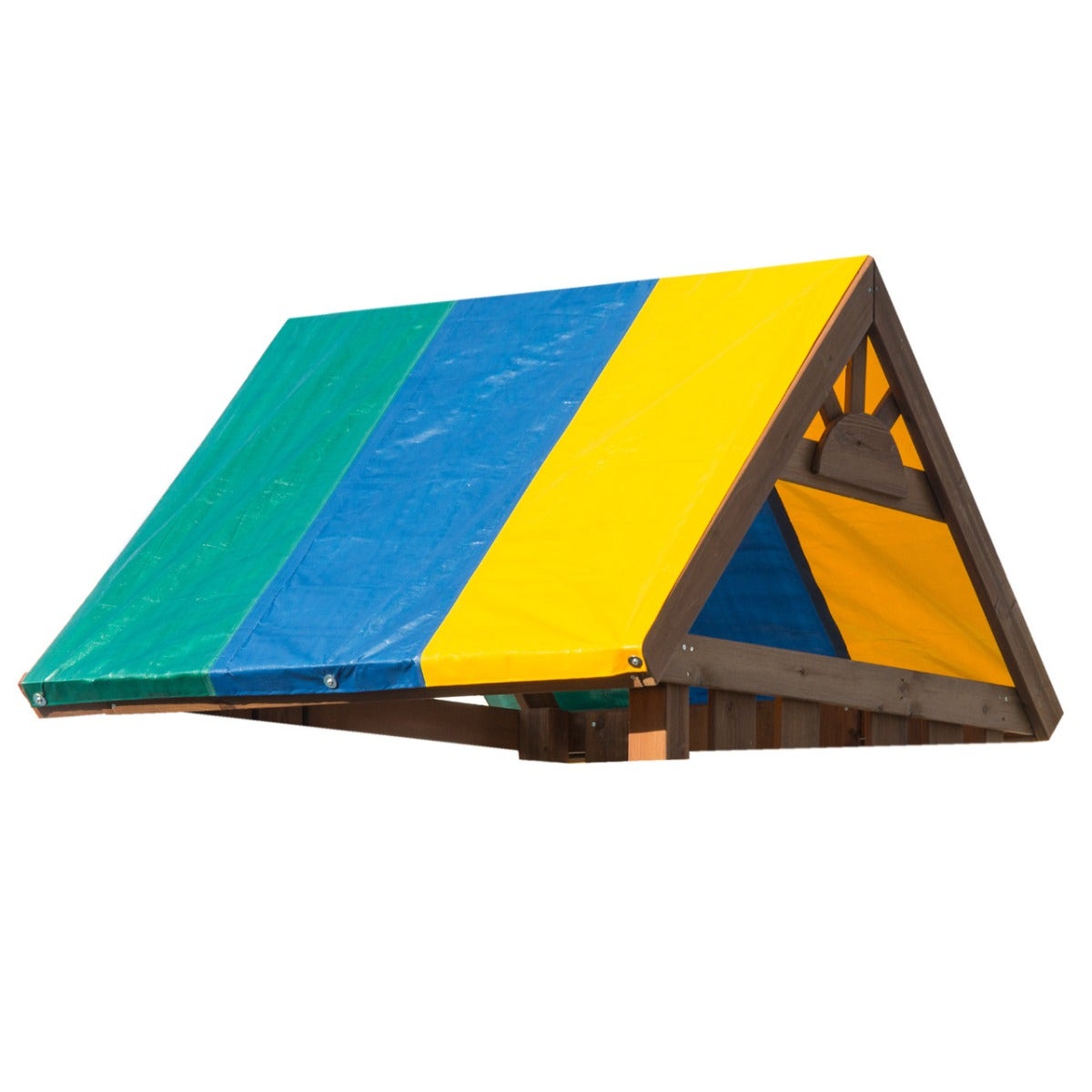

  • Upper clubhouse with vinyl striped roof for maximum shade

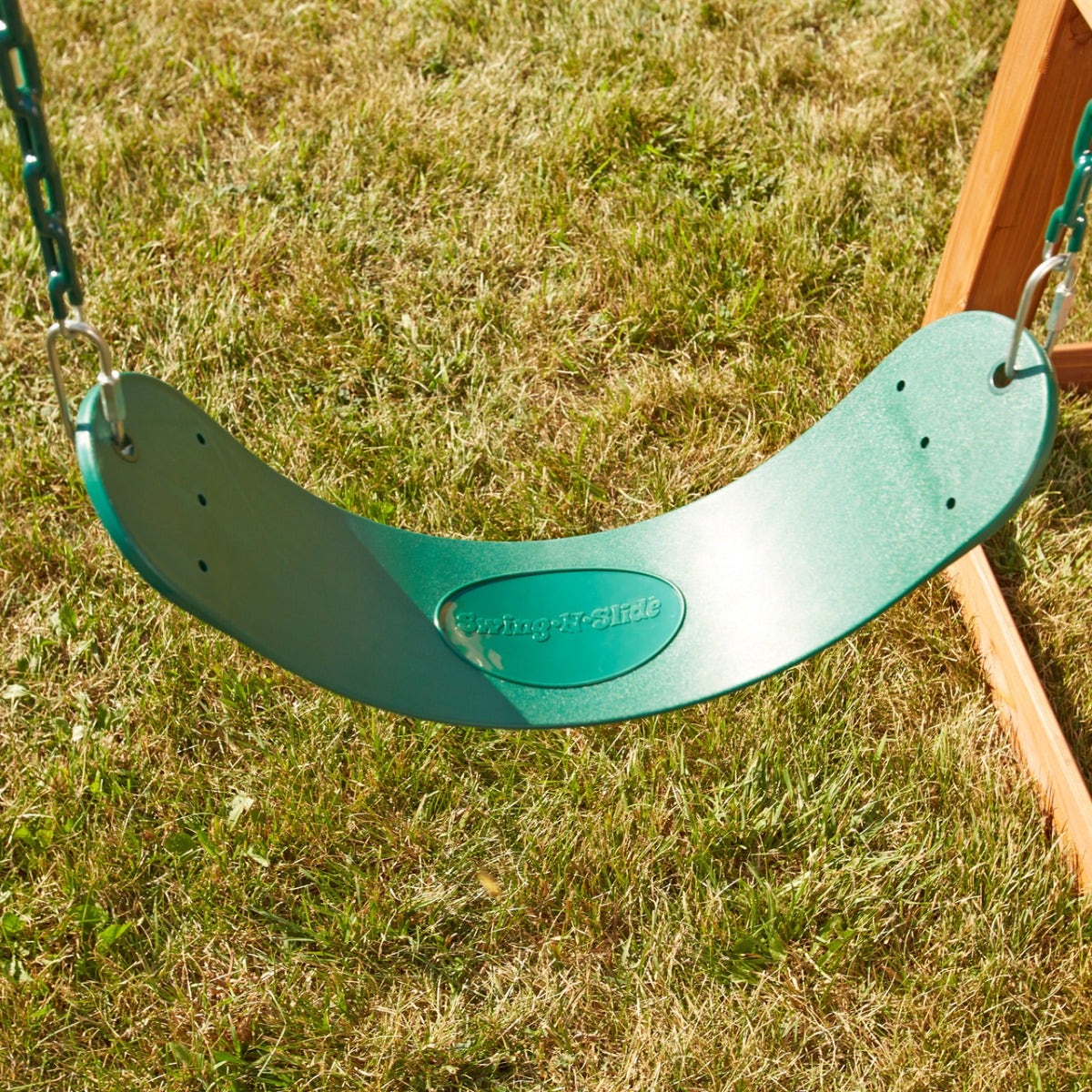

  • Two belt swings and an an acrobar with Plastisol-coated chains to prevent pinched fingers (also will not rust); weight limit: 115 lbs. each
  • Lumber and wood screws not included
Read More
ages: 2+
Quantity

technical information

  • Item Number: NE 4476
  • Space Requirements: 30'x29'
  • Packaged Dimensions: 44.25" L x 24.25" W x 12.25" H
  • Assembled Dimensions: 204" L x 168" W x 132" H
  • Weight with Packaging: 26 lbs.
  • Play Deck Area: 25 sq. ft.
  • Deck Height: 4 ft.
  • Swing Positions: 3
  • Materials: HDPE, EVA, Steel, UV Coated, HDPE Laminate
  • Safety Certifications: ASTM and CPSIA compliant
  • Tools Required: Drill 1/8" drill bit 7/16" & 1/2" sockets & wrench Hammer Adjustable wrench Tape Measure Screw driver Phillips Bit Carpenter Square Safety Glasses Pliers Ladder
  • Lumber Required:
  • Wrangler 280 1- 2 x 4 x 8 ft. 3- 2 x 4 x 10 ft. 4- 2 x 4 x 12 ft. 2- 5/4 x 6 x 8 ft. 3- 5/4 x 6 x 10 ft. 8- 2 x 6 x 10 ft. 2- 2 x 6 x 12 ft. 7- 4 x 4 x 8 ft. 1- 4 x 6 x 12 ft. or 2- 2 x 6 x 12 ft. 2 lb 8 x 2 inch screws 3 lb 8 x 2 1/2 inch screws 7 lb 8 x 3 inch screws
  • Wrangler 285: 3- 2 x 4 x 8 ft. 4- 2 x 4 x 10 ft. 5- 2 x 4 x 12 ft. 2- 5/4 x 6 x 8 ft. 3- 5/4 x 6 x 10 ft. 2- 2 x 6 x 8 ft. 9- 2 x 6 x 10 ft. 2- 2 x 6 x 12 ft. 7- 4 x 4 x 8 ft. 1- 4 x 6 x 12 ft. or 2- 2 x 6 x 12 ft. 2 lb 8 x 2 inch screws 3 lb 8 x 2 1/2 inch screws 7 lb 8 x 3 inch screws
  • Wrangler 820 2- 2 x 4 x 8 ft. 4- 2 x 4 x 10 ft. 4- 2 x 4 x 12 ft. 2- 5/4 x 6 x 8 ft. 3- 5/4 x 6 x 10 ft. 8- 2 x 6 x 10 ft. 2- 2 x 6 x 12 ft. 7- 4 x 4 x 8 ft. 1- 4 x 6 x 12 ft. or 2- 2 x 6 x 12 ft. 2 lb 8 x 2 inch screws 2 lb 8 x 2 1/2 inch screws 5 lb 8 x 3 inch screws
  • Wrangler 825 1- 2 x 4 x 8 ft. 3- 2 x 4 x 10 ft. 4- 2 x 4 x 12 ft. 2- 5/4 x 6 x 8 ft. 3- 5/4 x 6 x 10 ft. 8- 2 x 6 x 10 ft. 2- 2 x 6 x 12 ft. 7- 4 x 4 x 8 ft. 1- 4 x 6 x 12 ft. or 2- 2 x 6 x 12 ft. 2 lb 8 x 2 inch screws 2 lb 8 x 2 1/2 inch screws 5 lb 8 x 3 inch screws
  • UPC: 032866044768

assembly instructions

Looking for Replacement Parts?
